New 2026 release.

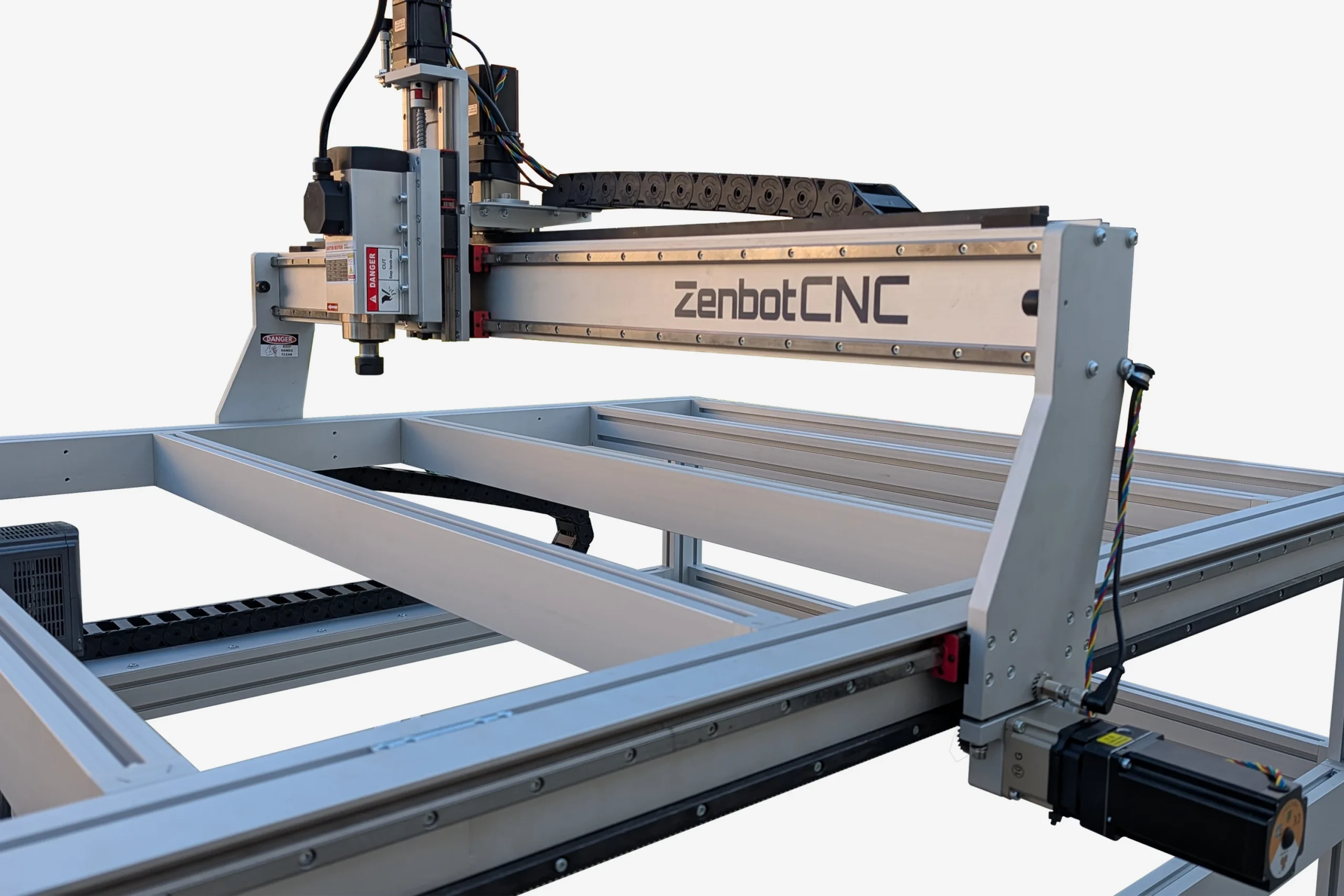

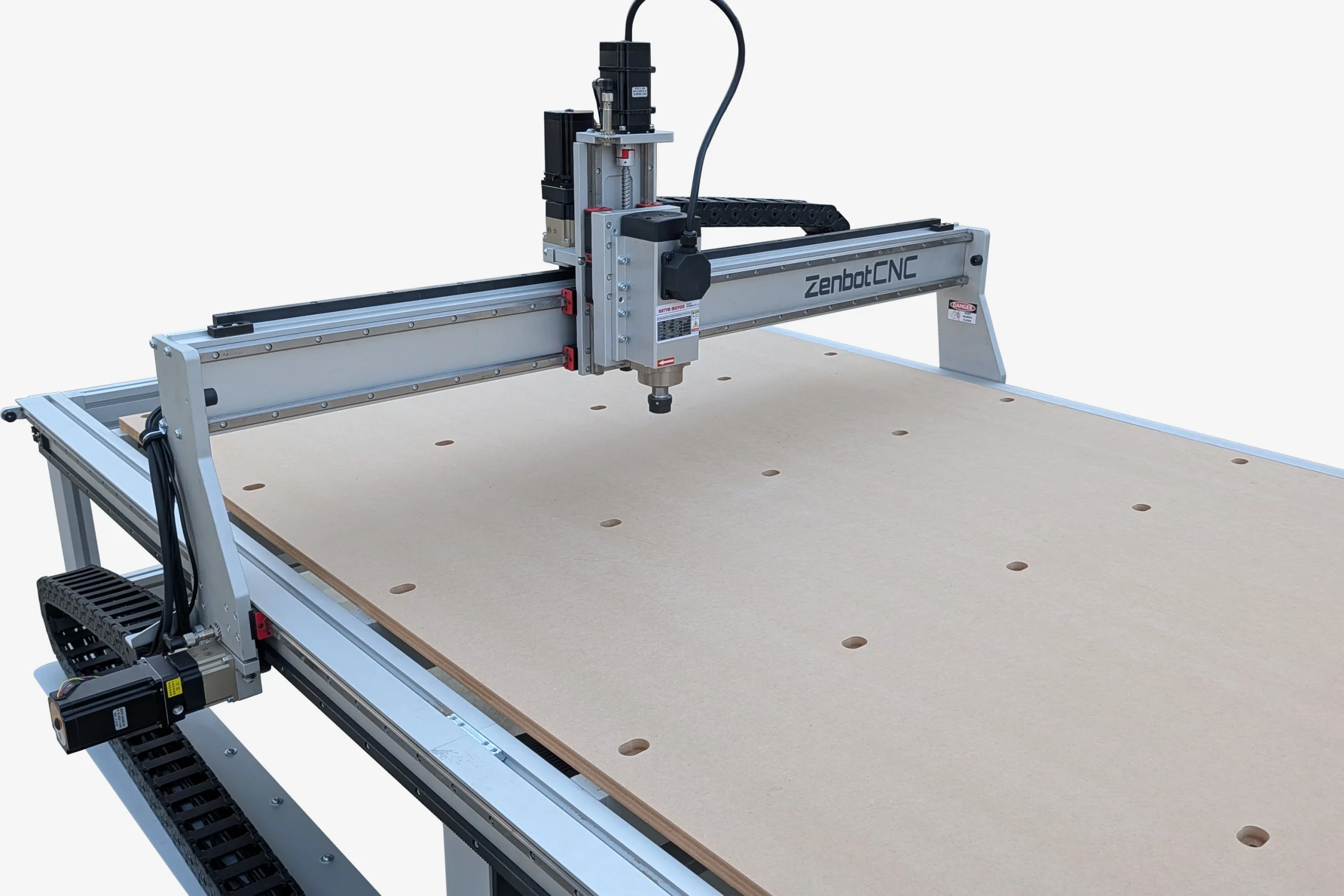

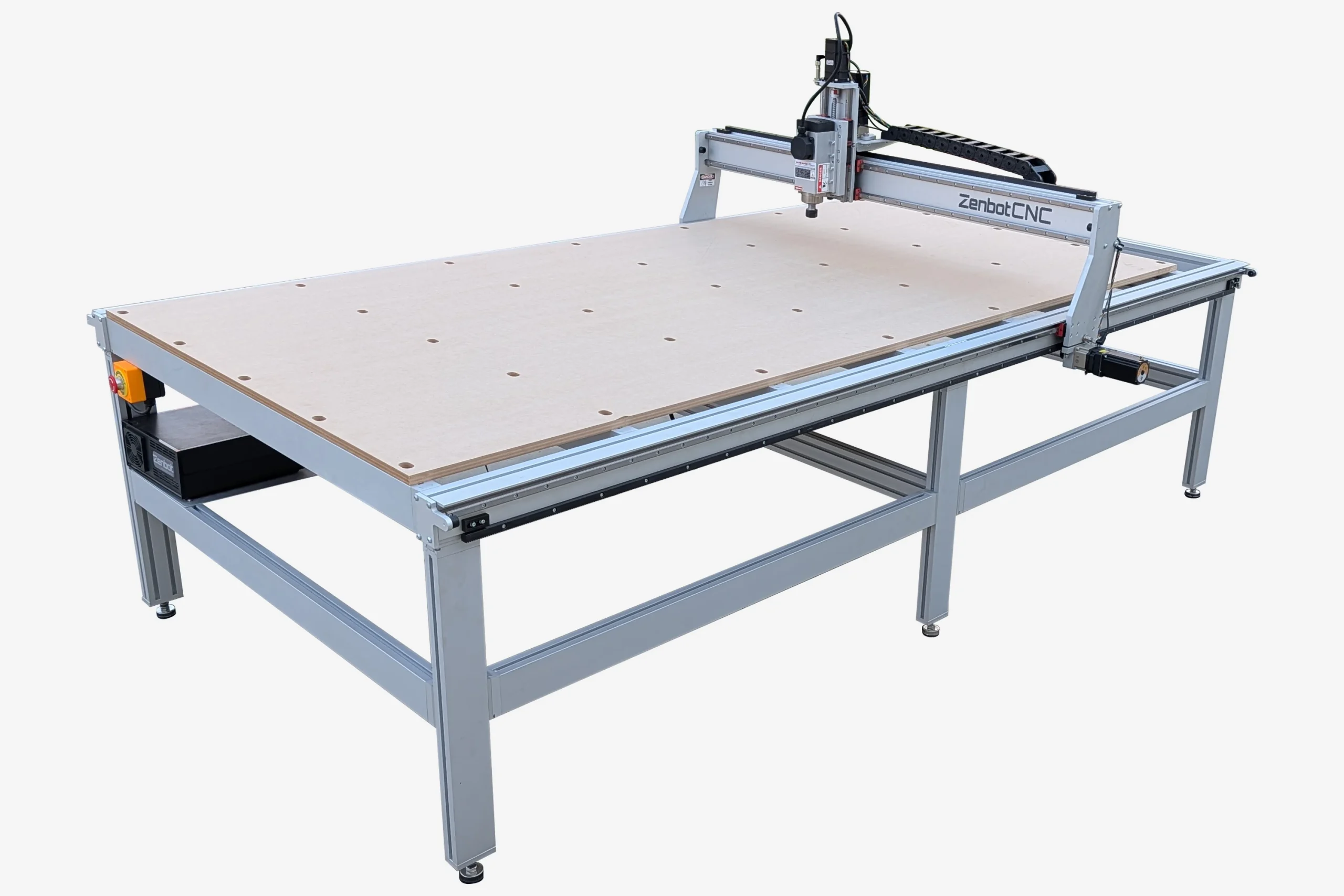

Full-sheet CNC platform built for accuracy, reliability, and real materials.
A rigid, all-aluminum CNC router designed to cut full sheets of wood, plastics, and aluminum with consistent accuracy across the entire work area.
Our newest platform, refined for easier setup and stronger performance — built on years of iteration from earlier Zenbot machines.
- Full 4×8 cutting area
- All-aluminum frame with industrial motion components
- Suitable for education, workshops, and small production environments
- Designed for long-term ownership and serviceability
Zenbot
Pro 2
Spindle Type
Add-ons
Software Add-on
Desktop products limited to 24″×24″ work area
Total
$6,799.00
Ships via UPS
Full one-year warranty
Direct phone support from the builder
100″×50″×7″
Travel (X×Y×Z)
±0.002"
Repeatability
All-Aluminum
Frame
Ships UPS
Delivery
Fits Through Any Door
Ships via UPS in multiple easy-to-handle packages, each sized to fit through a standard doorway. Set up your shop wherever it works best.

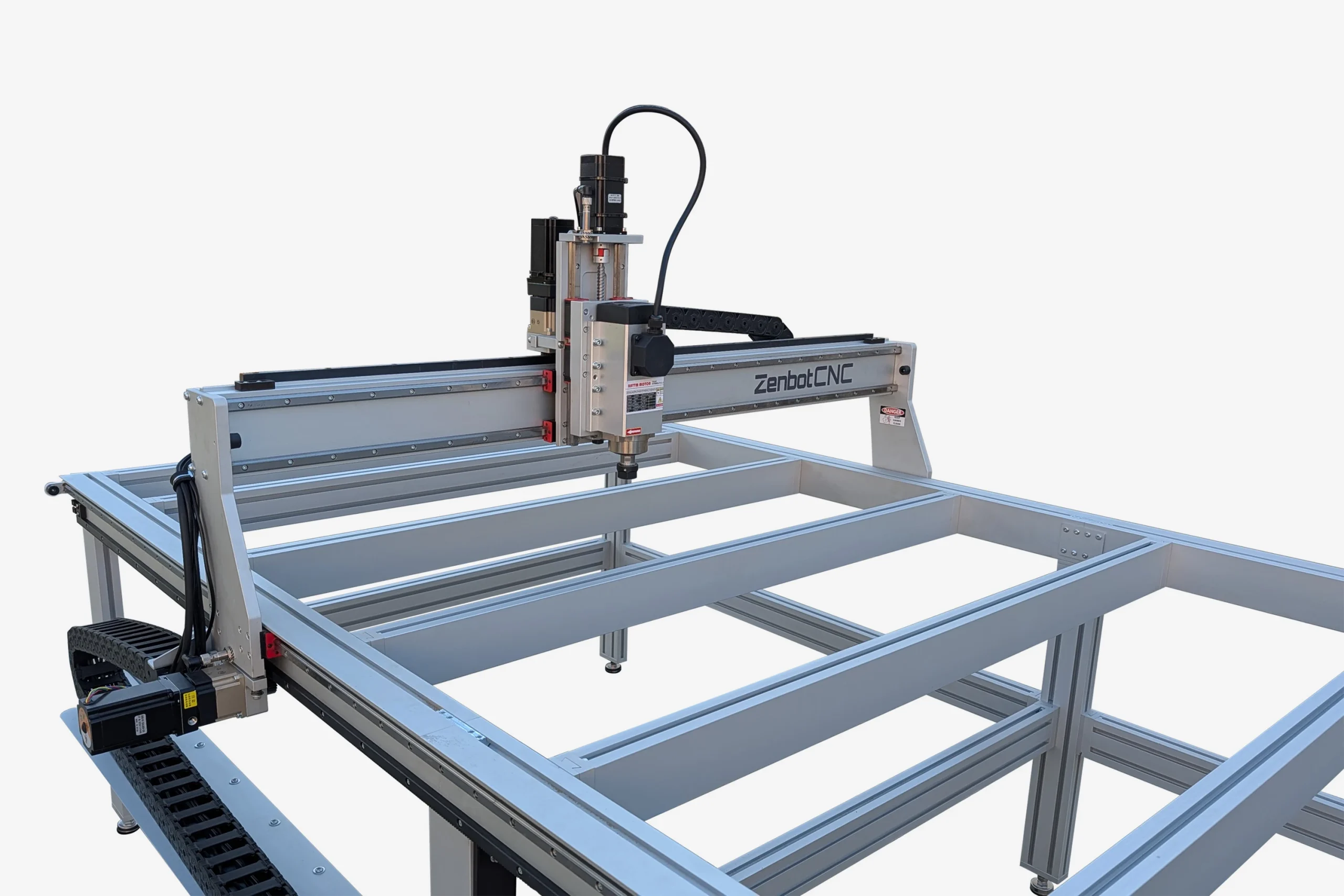

Rigid Aluminum Frame
Custom aluminum extrusions with precision-machined gantry beam mounting surfaces. Minimizes vibration and flex across the full cutting area.

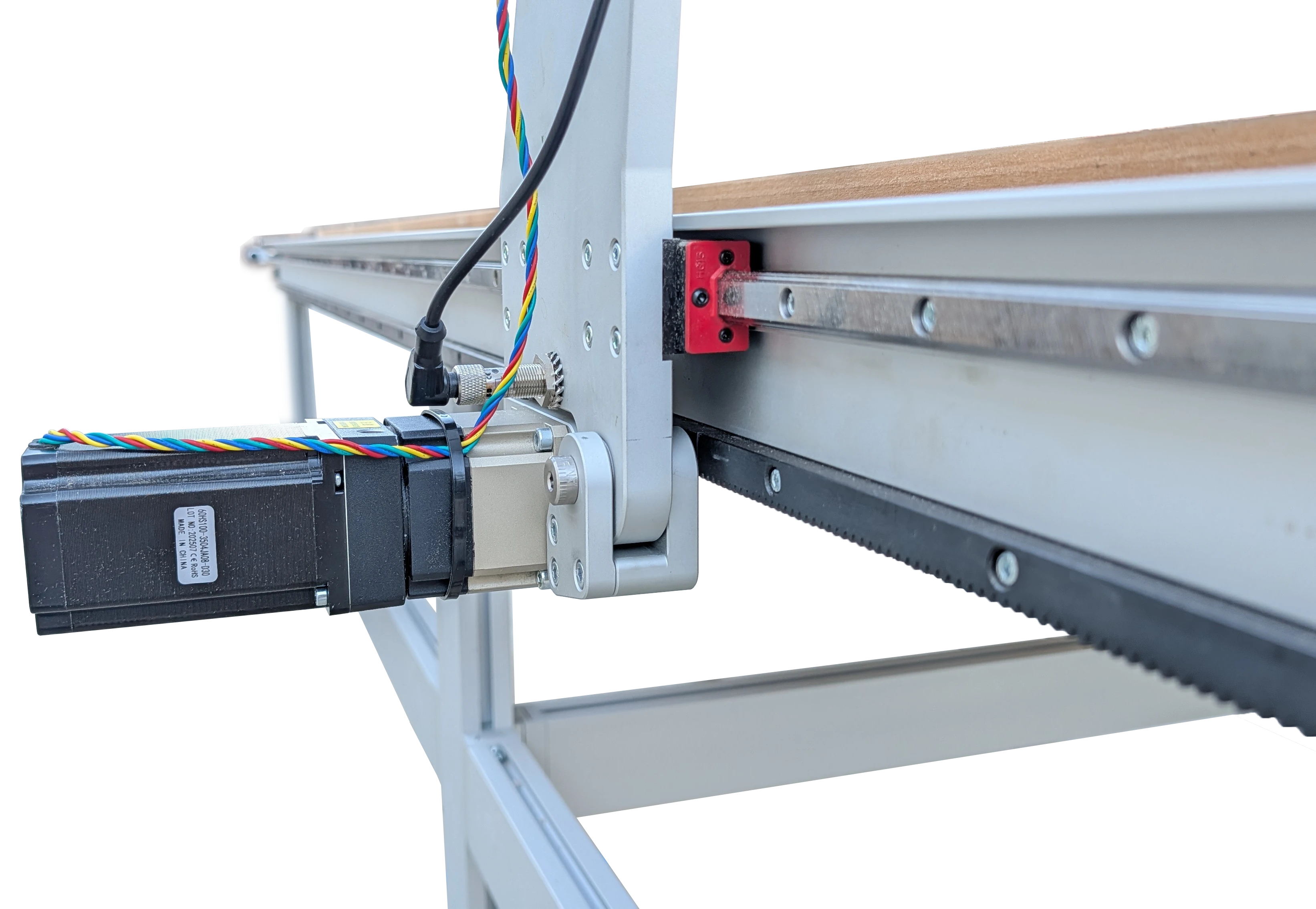

Industrial Linear Motion
Profile linear guide rails on all axes paired with inductive proximity sensors deliver smooth, accurate motion and repeatable homing.
Where the Pro 2 Fits
The Zenbot Pro 2 bridges the gap between hobby and industrial machines — full-sheet capability, rigid construction, and serviceable components without the cost or complexity of industrial automation.
Built to Go Together—Perfectly
Patent-Pending Assembly System
Interlocking alignment features guide every structural component into place, giving you a rigid, square frame with minimal adjustment. Set up faster, break down cleaner, and get repeatable results every time.
Precision Where It Matters Most

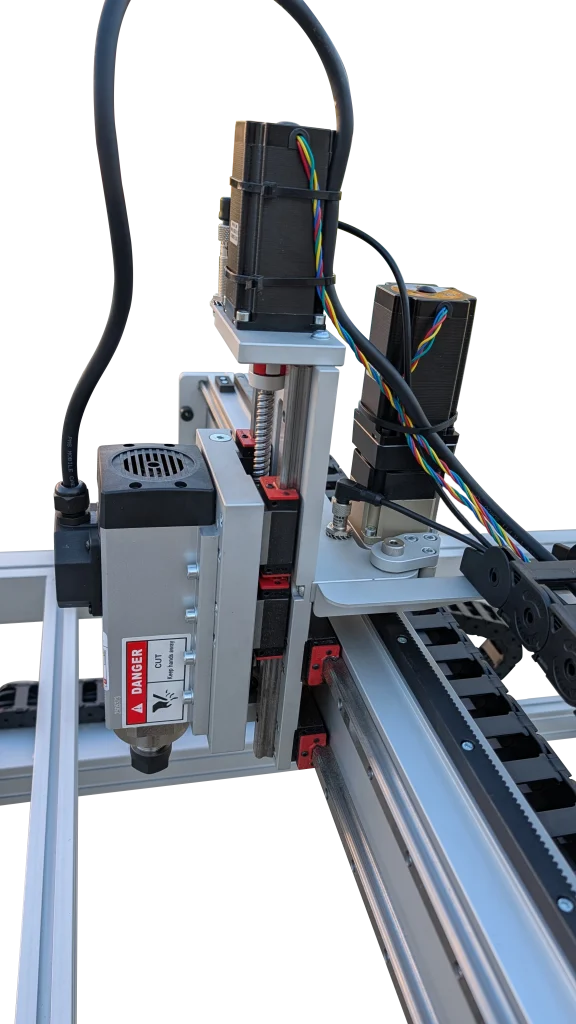

Ball Screw Z-Axis Control
A precision ball screw drives smooth, backlash-free vertical motion — holding position under load for accurate depth control, cleaner cuts, and better finishes on detailed toolpaths.
Built to Move Under Load

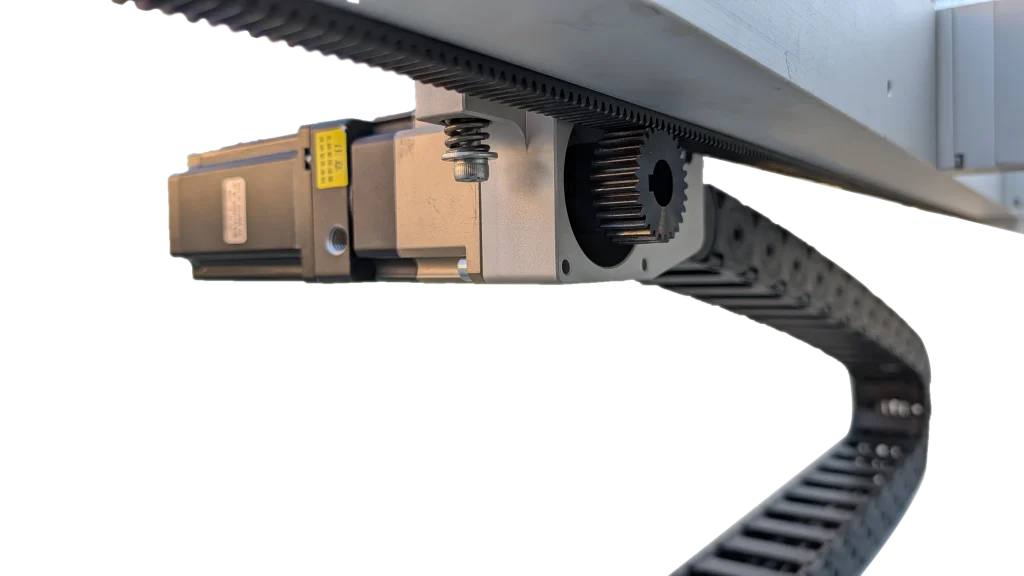

Purpose-Built Motion System

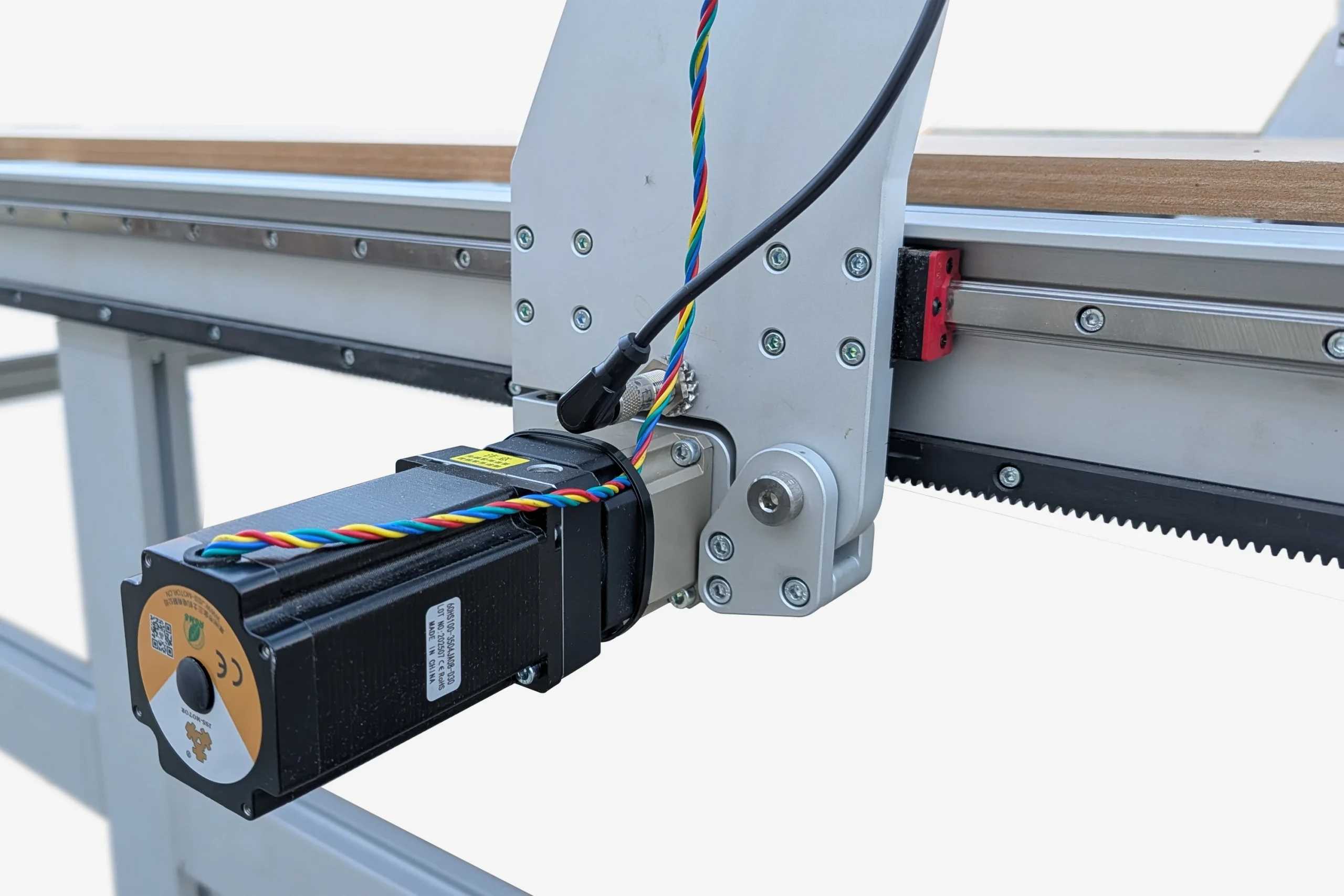

Rack and pinion drive delivers efficient power and consistent motion across long travel distances. Properly matched motors and components keep the machine responsive under load, hour after hour.
Homing You Can Count On

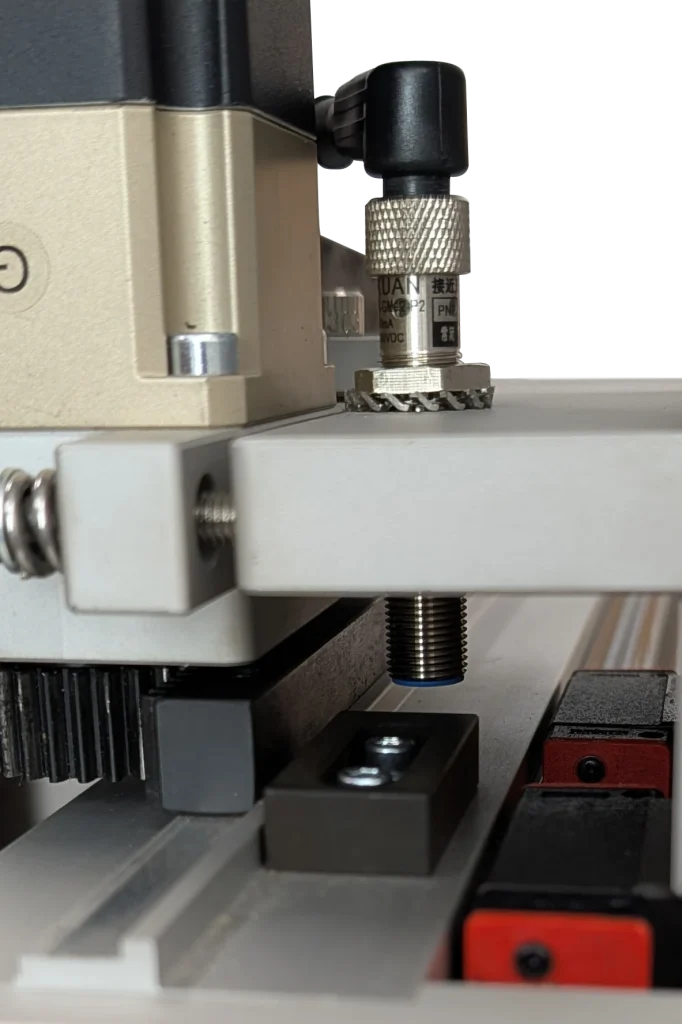

Inductive Proximity Sensors
Non-contact homing that shrugs off dust, chips, and vibration — for accurate, repeatable positioning without the wear of mechanical limit switches.
Spindle & Add-on Details
Choose the spindle and accessories that match your materials and workflow.

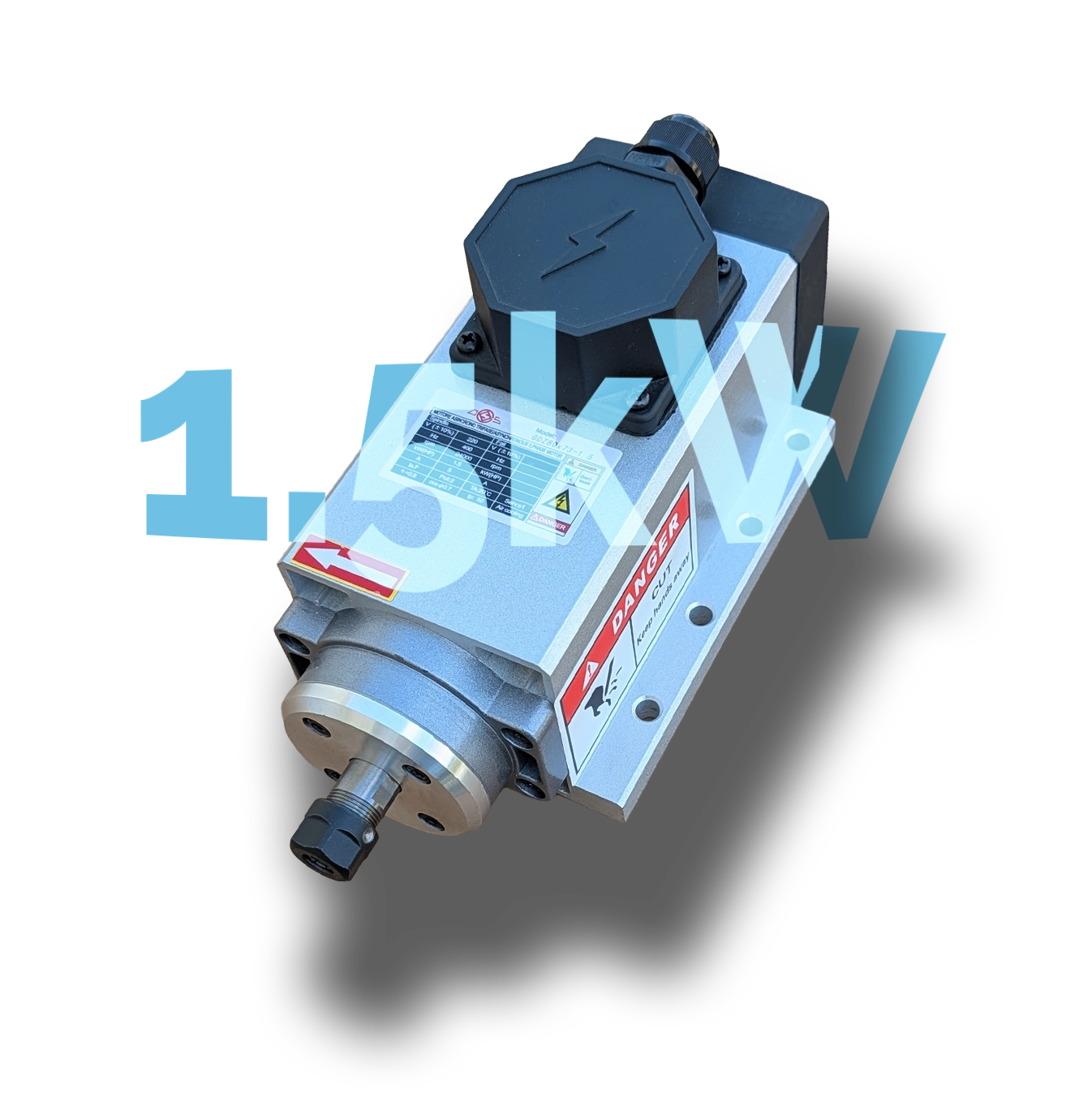

1.5 kW Spindle (110V)
The standard 1.5 kW spindle runs on 110V and is well suited for wood, plastics, foam, and light aluminum work.
- ER11 collet — accepts up to 1/4″ shank tooling
- Speed range: 8,000–24,000 RPM
- Water-cooled for quiet, consistent operation
- Variable frequency drive (VFD) included
- Ideal for general-purpose routing and carving

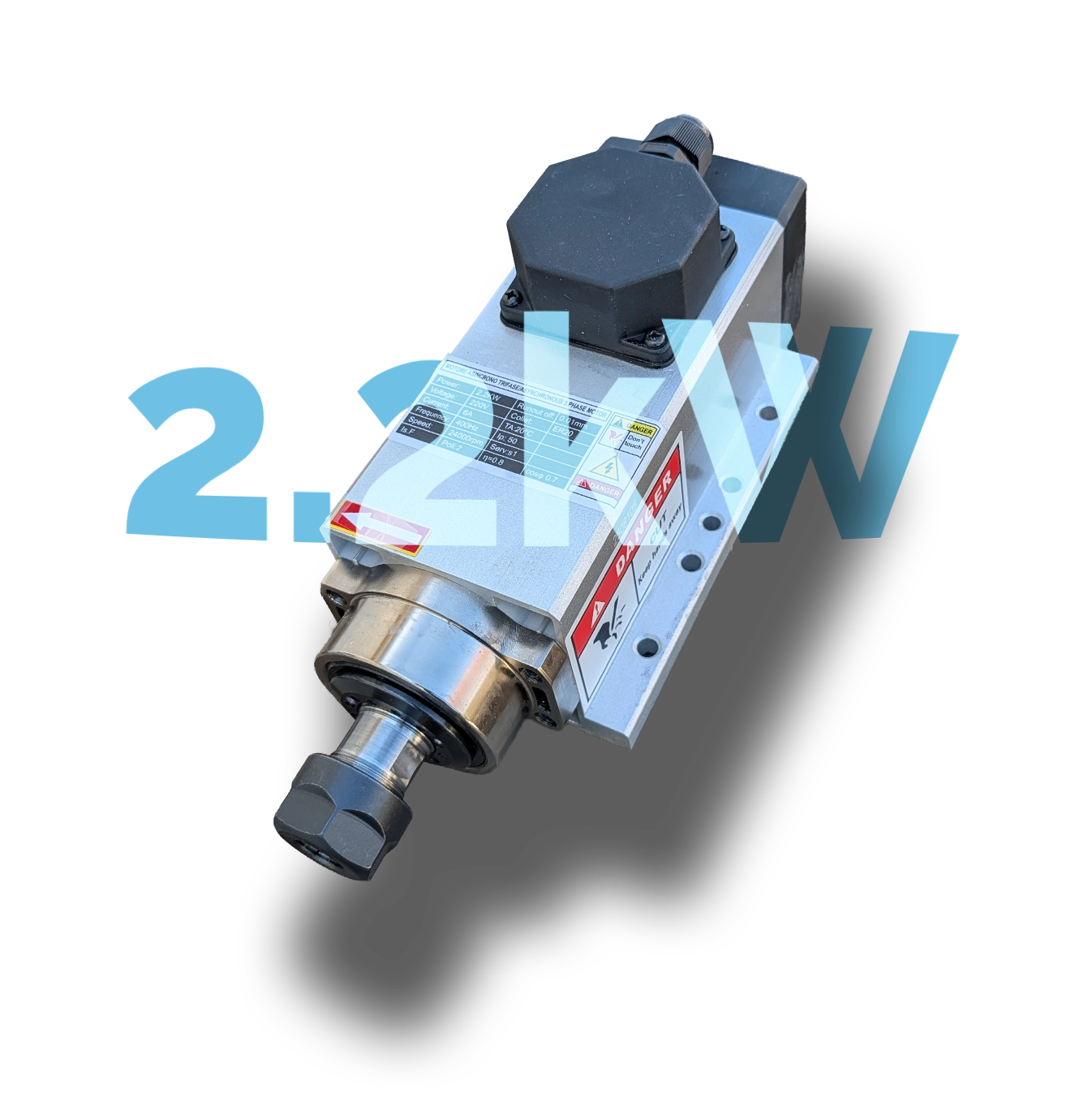

2.2 kW Spindle (220V)
The upgraded 2.2 kW spindle runs on 220V and is built for heavier cuts, aluminum machining, larger tooling, and flattening slabs.
- ER20 collet — accepts up to 1/2″ shank tooling
- Speed range: 8,000–24,000 RPM
- Water-cooled for quiet, consistent operation
- Variable frequency drive (VFD) included
- Recommended for hardwoods, aluminum, and production use

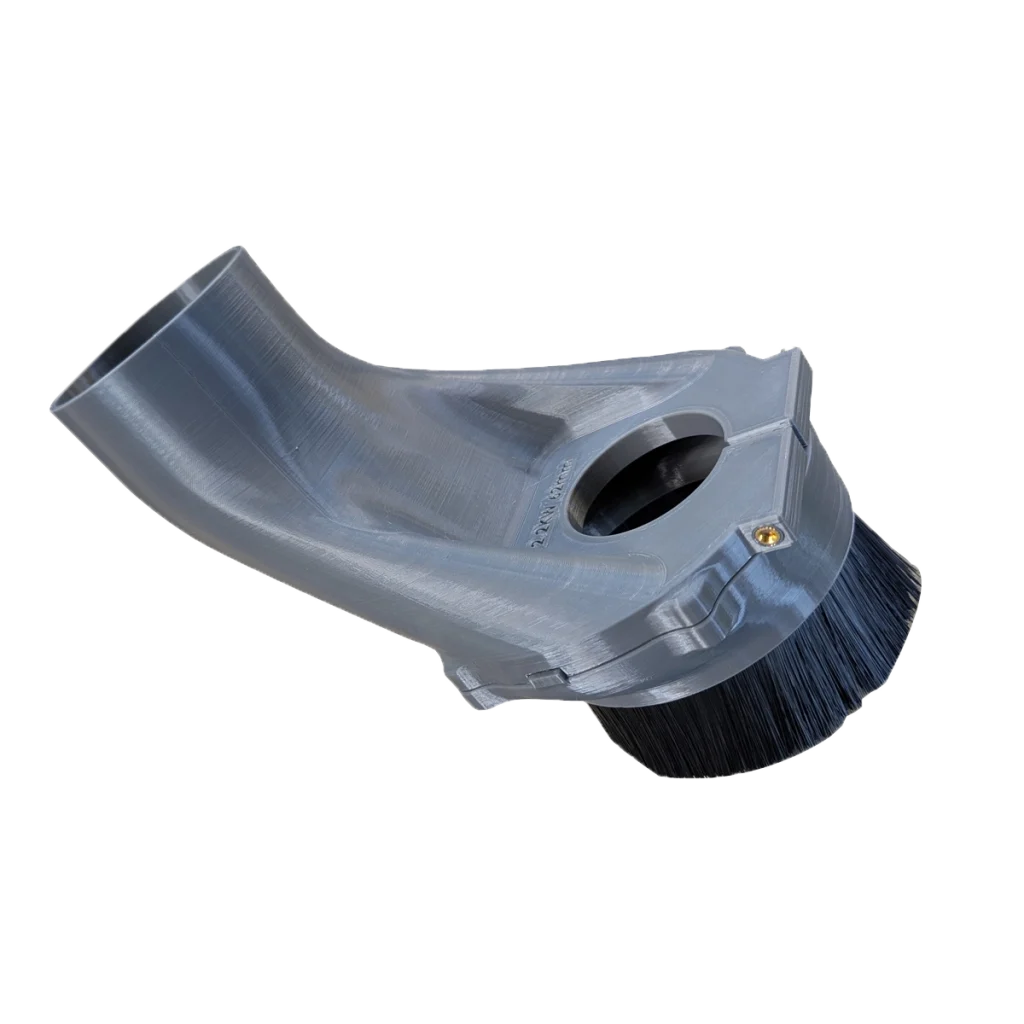

Dust Shoe
The brush skirt surrounds the spindle to contain debris while cutting, helping maintain a cleaner workspace, improving cut visibility, and reducing cleanup after machining.
- Fits standard 65mm and 80mm spindle mounts
- Adjustable bristles for variable depth work
- 2.5″ vacuum port for efficient collection
Built for Full-Sheet Work
True 4×8 cutting area for cabinet shops and production environments.
Shop-Friendly
Ships in manageable boxes, assembles with common tools, fits standard shops.
Software Options
Choose the CAD/CAM software that fits your workflow. All Vectric software integrates seamlessly with the Zenbot Pro 2.
Cut2D
Cut2D is designed for 2D CNC operations such as profiling, pocketing, drilling, and simple engraving. It offers a clean, efficient workflow for producing flat parts, panels, and signs with reliable, predictable toolpaths.
Cut2D is a strong choice for users focused on straightforward 2D machining without advanced production or 3D features.
Desktop vs Pro
Desktop
Cut2D Desktop includes all core 2D design and machining tools, but limits the maximum work area to 24″ × 24″. This version is best suited for smaller CNC machines or compact projects.
Pro
Cut2D Pro removes all work area limits and unlocks production features such as nesting, toolpath templates, gadgets, and keep-out zones. For the Zenbot Pro 2, Cut2D Pro is required to use the full cutting area without tiling.
- •2D machining and engraving
- •Desktop: 24″ × 24″ work area limit
- •Pro: unlimited work area + production tools
Materials It's Designed to Cut
Material capability depends on tooling, feeds, and machine configuration.
Hardwood
Furniture parts, joinery
Plywood & MDF
Cabinet components
Plastics
HDPE, acrylic, signage
Aluminum
Plates, brackets
Composites
Fixtures, specialty work
Foam
Packaging, prototyping, boat decking
Laminates
Panels, overlays, ACM
Soft Metals
Aluminum, brass
Sheet Goods
Full 4×8 processing
Custom Materials
Available by inquiry
Accuracy You Can Design Around
The Zenbot Pro 2 is built to deliver consistent results.
Repeatability
What's Included
- CNC machine frame
- Complete motion system (rails, drives, motors)

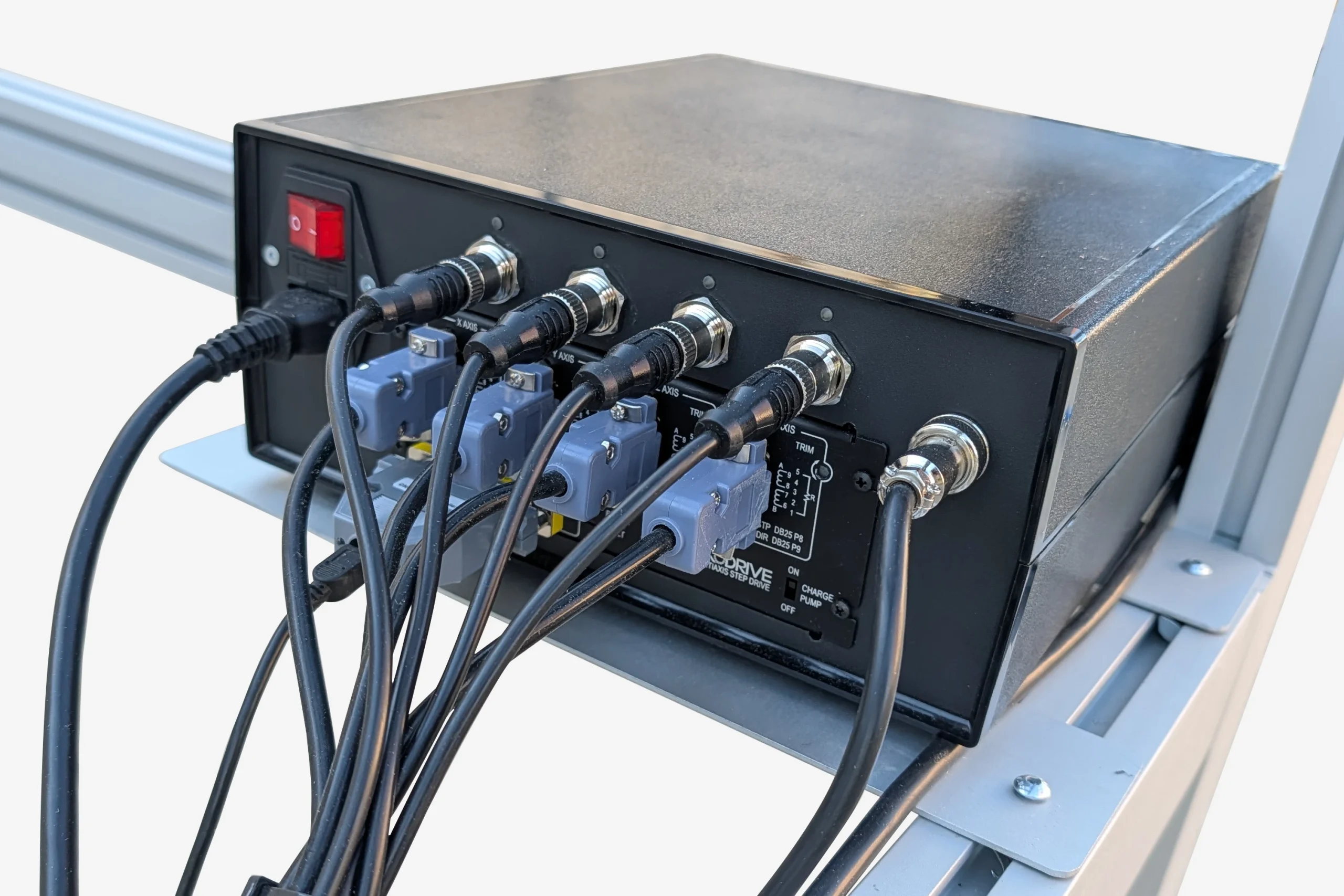

- Controller and electronics
- 1.5 kW spindle included (2.2 kW available as upgrade)
- UCCNC Control software License and Configuration
- Basic documentation and setup guidance
What You'll Need
- Dedicated circuit for spindle (110V 15A for 1.5 kW, 220V 10A for 2.2 kW)
- PC meeting UCCNC system requirements
- CAD/CAM software (Vectric, Fusion, or equivalent)
- Adequate clearance for machine footprint
- Common hand tools for assembly
- 3/4″ MDF spoil board
Support & Warranty
Full One-Year Warranty
Coverage on all components from delivery
Talk to the Builder
Direct phone and email support from the people who built your machine
Replacement Parts
Parts available for purchase anytime
30-Day Guarantee
Full refund minus shipping
Technical Specifications
Not Sure? Contact Us
Have questions about the Pro 2, need help choosing options, or want to discuss your project? We're here to help.
